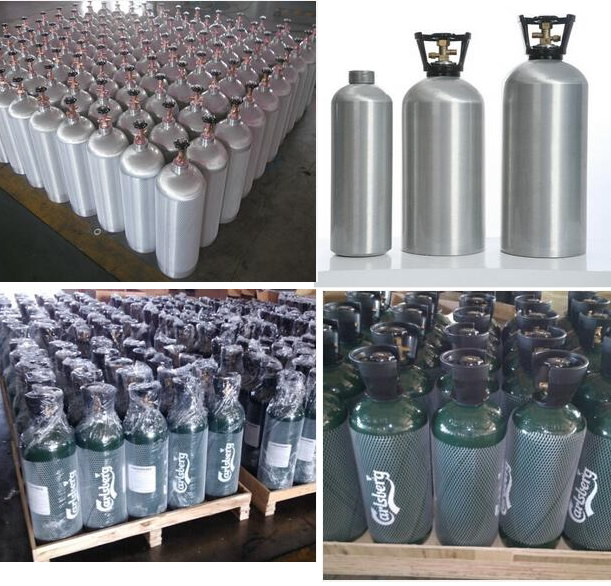

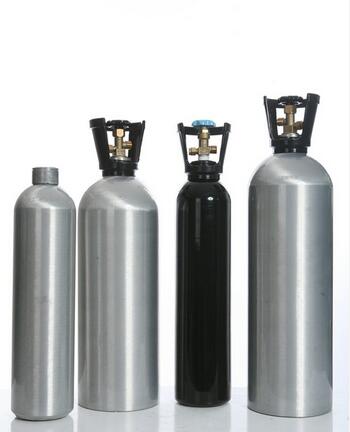

食品及二氧化碳铝合金气瓶

NET食品级二氧化碳气瓶由铝合金6061所制，重量比同体积钢瓶轻40%。独特的内外表面制造工艺，确保其优越的防腐蚀性能, 又确保了承装气体清洁、无异味。气瓶制造严格遵循国内外行业标准要求，性能稳定均一。严格的质量控制及详细的产品使用维护培训，确保客户使用安全。

技术参数

Class A 124bar working pressure

规格型号 Models	容积		外径		长度		壁厚		重量		工作压力
	Water Capacity		Outside Diameter		Overall Length		Wall Thickness		Empty Weight		Working Pressure
	Lts	Cu ft	mm	in	mm	in	mm	in	kgs	lbs	bar	psi
LWH111-1.4-12.4	1.4	0.049	111	4.37	229	9.02	4.7	0.19	1.4	3.09	124	1800
LWH111-1.7-12.4	1.7	0.060	111	4.37	264	10.39	4.7	0.19	1.6	3.53	124	1800
LWH140-3.4-12.4	3.4	0.120	140	5.51	347	13.66	5.9	0.23	3.02	6.66	124	1800
LWH176-6.7-12.4	6.7	0.236	176	6.93	422	16.61	7.4	0.29	5.9	13.01	124	1800
LWH176-10.0-12.4	10.0	0.353	176	6.93	589	23.19	7.4	0.29	7.7	16.98	124	1800
LWH204-13.4-12.4	13.4	0.473	204	8.03	592	23.31	8.3	0.33	10.4	22.93	124	1800
LWH204-14.7-12.4	14.7	0.519	204	8.03	646	25.43	8.3	0.33	12.3	27.12	124	1800
LWH204-23.4-12.4	23.4	0.826	204	8.03	966	38.03	8.3	0.33	15.8	34.83	124	1800
LWH232-33.4-12.4	33.4	1.180	232	9.13	1070	42.13	9.8	0.39	23.7	52.25	124	1800

Class B 150bar working pressure

规格型号 Models	容积		外径		长度		壁厚		重量		工作压力
	Water Capacity		Outside Diameter		Overall Length		Wall Thickness		Empty Weight		Working Pressure
	Lts	Cu ft	mm	in	mm	in	mm	in	kgs	lbs	bar	psi
LWH60-0.6-15	0.6	0.021	60	2.36	330	12.99	3.1	0.12	0.7	1.48	150	2175
LWH89-1.0-15	1.0	0.035	89	3.50	290	11.42	4.5	0.18	1.3	2.78	150	2175
LWH111-1.4-15	1.4	0.049	111	4.37	257	10.12	5.6	0.22	2.0	4.30	150	2175
LWH111-1.7-15	1.7	0.060	111	4.37	310	12.20	5.6	0.22	2.3	5.03	150	2175
LWH108-2.0-15	2.0	0.071	108	4.25	360	14.17	5.6	0.22	2.3	4.98	150	2175
LWH140-3.4-15	3.4	0.120	140	5.51	372	14.65	7.1	0.28	4.7	10.36	150	2175
LWH140-4.0-15	4.0	0.141	140	5.51	420	16.54	7.1	0.28	5.0	11.02	150	2175
LWH140-5.0-15	5.0	0.177	140	5.51	505	19.88	7.1	0.28	5.2	11.46	150	2175
LWH140-6.0-15	6.0	0.212	140	5.51	590	23.23	7.1	0.28	5.9	13.01	150	2175
LWH176-6.7-15	6.7	0.237	176	6.93	474	18.66	8.9	0.35	8.5	18.65	150	2175
LWH140-7.0-15	7.0	0.247	140	5.51	675	26.58	7.1	0.28	6.6	14.55	150	2175
LWH140-8.0-15	8.0	0.283	140	5.51	755	29.72	7.1	0.28	7.1	15.70	150	2175
LWH159-8.0-15	8.0	0.283	159	6.26	635	25.00	8.1	0.32	8.0	17.66	150	2175
LWH176-8.0-15	8.0	0.283	176	6.93	498	19.61	8.9	0.35	8.25	18.19	150	2175
LWH176-9.3-15	9.4	0.332	176	6.93	603	23.74	8.9	0.35	10.5	23.15	150	2175
LWH159-10.0-15	10.0	0.353	159	6.26	740	29.13	8.1	0.32	9.0	19.80	150	2175
LWH176-10.0-15	10.0	0.353	176	6.93	632	24.88	8.9	0.35	10.9	24.03	150	2175
LWH204-12.0-15	12.0	0.424	204	8.03	600	23.62	10.3	0.41	13.1	28.88	150	2175
LWH204-13.4-15	13.4	0.473	204	8.03	650	25.59	10.3	0.41	13.9	30.64	150	2175
LWH204-15.0-15	15.0	0.530	204	8.03	710	27.95	10.3	0.41	15.2	33.51	150	2175
LWH204-20.0-15	20.0	0.706	204	8.03	910	35.83	10.3	0.41	18.9	41.67	150	2175
LWH232-30.0-15	30.0	1.059	232	9.13	1010	39.76	11.7	0.46	30.5	67.24	150	2175
LWH232-33.4-15	33.4	1.180	232	9.13	1126	44.33	11.7	0.46	31.3	69.00	150	2175
LWH232-40.0-15	40.0	1.413	232	9.13	1340	52.76	11.7	0.46	36.5	80.47	150	2175
LWH250-40.0-15	40.0	1.413	250	9.84	1150	45.28	12.6	0.50	36.70	80.91	150	2175
LWH250-50.0-15	50.0	1.766	250	9.84	1403	55.24	12.6	0.50	43.80	96.56	150	2175

Class C 200bar working pressure

规格型号 Models &nbnbsp;	容积		外径		长度		壁厚		重量		工作压力
	Water Capacity		Outside Diameter		Overall Length		Wall Thickness		Empty Weight		Working Pressure
	Lts	Cu ft	mm	in	mm	in	mm	in	kgs	lbs	bar	psi
LWH111-1.0-20	1.0	0.035	111	4.37	221	8.70	7.4	0.29	1.93	4.25	200	2901
LWH111-1.4-20	1.4	0.049	111	4.37	275	10.83	7.4	0.29	2.31	5.09	200	2901
LWH111-2.0-20	2.0	0.071	102	4.02	357	14.06	7.4	0.29	2.89	6.37	200	2901
LWH111-2.7-20	2.7	0.095	117	4.61	466	18.35	7.4	0.29	3.66	8.07	200	2901
LWH140-5.4-20	5.4	0.191	140	5.51	600	23.62	9.3	0.37	7.39	16.29	200	2901
LWH176-6.7-20	6.7	0.237	176	6.90	477	18.78	11.7	0.46	10.10	22.27	200	2901
LWH176-8.0-20	8.0	0.283	176	6.90	537	21.14	11.7	0.46	11.10	24.47	200	2901
LWH176-9.3-20	9.3	0.328	176	6.90	614	24.17	11.7	0.46	12.40	27.34	200	2901
LWH204-13.4-20	13.4	0.473	204	8.03	686	27.01	13.4	0.53	18.00	39.68	200	2901
LWH204-20.0-20	20.0	0.706	204	8.03	965	37.99	13.4	0.53	25.00	55.12	200	2901
LWH232-26.8-20	26.8	0.946	232	9.13	976	38.43	15.4	0.61	33.3	73.41	200	2901
LWH232-30.0-20	30.0	1.059	232	9.13	1076	42.36	15.4	0.61	36.4	80.25	200	2901
LWH232-40.0-20	40.0	1.413	232	9.13	1365	53.74	15.4	0.61	44.1	97.22	200	2901
LWH250-40.0-20	40.0	1.413	250	9.84	1227	48.31	16.5	0.65	46.3	102.07	200	2901
LWH250-50.0-20	50.0	1.766	250	9.84	1500	59.06	16.5	0.65	56.0	123.46	200	2901

•Cylinders can be manufactured in accordance with international standards to meet customer requirements.

•Thread, fittings & valves or cylinder color upon request.

•For more specifications or other requirements pleas
