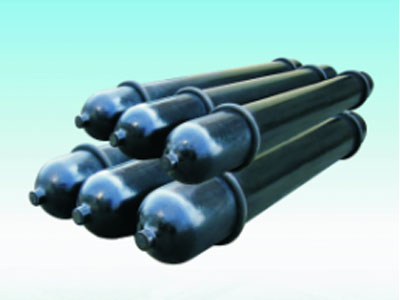

碳钢类16-69MPA双头无缝气瓶根据GB150-2011《钢质压力容器》及《固定式压力容器安全技术监察规程》和《钢质无缝储气用瓶式压力容器》设计、制造、检验，设计使用寿命长达20年。
该瓶式压力容器从单容积1L-1000L，工作压力从16MPA-69MPA，充装介质常规惰性气体及氧气。本厂对该高压容器已取得中国船级社CCS\CE\阿斯米等国际认证。广泛应用于军工、厂矿、瓶式容器的检测、安全试验台的能动源，安全可靠

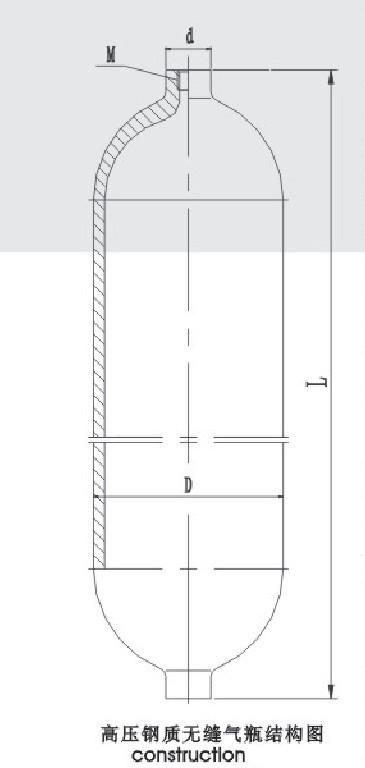

| 高压气瓶及储气罐参数表 | |||||||
| 外径 | 产品代号 | 压力 | 容积（L） | 重量（KG） | |||
| 长度 L | M | d | |||||
| Φ152 | GYS152-1.6/35 | 35MPa | 1.6 | 240 | PZ27.8 | Φ42 | 8.28 |
| GYS152-4/35 | 4 | 420 | 14.49 | ||||
| GYS152-6.3/35 | 6.3 | 600 | 20.70 | ||||
| Φ152 | YCQ15216035.0 | 35MPa | 1.6 | 240 | PZ27.8 | Φ43 | 8.30 |
| YCQ15225035.0 | 2.5 | 310 | 10.70 | ||||
| YCQ15240035.0 | 4 | 420 | 14.50 | ||||
| YCQ15260035.0 | 6.3 | 600 | 20.70 | ||||
| Φ219 | CGS21901035.0a | 35MPa | 10 | 535 | M42×2 | Φ65 | 37.30 |
| CGS21901635.0a | 16 | 750 | 52.29 | ||||
| CGS21902035.0a | 20 | 895 | 62.40 | ||||
| CGS21902535.0a | 25 | 1070 | 74.60 | ||||
| CGS21903235.0a | 32 | 1325 | 92.38 | ||||
| CGS21904035.0a | 40 | 1610 | 112.25 | ||||
| CGS21905035.0a | 50 | 1965 | 137.05 | ||||
| Φ219 | CYS219-10/40 | 40MPa | 10 | 540 | PZ27.8 | Φ49 | 36.95 |
| CYS219-12.5/40 | 12.5 | 620 | 43.22 | ||||
| CYS219-16/40 | 16 | 755 | 51.94 | ||||
| CYS219-25/40 | 25 | 1080 | 74.60 | ||||
| CYS219-32/40 | 32 | 1325 | 91.68 | ||||
| CYS219-40/40 | 40 | 1615 | 111.90 | ||||
| CYS219-50/40 | 50 | 1970 | 136.65 | ||||
| Φ219 | CGS219-10/15 | 15MPa | 10 | 510 | M60×2 | Φ50 | 18.82 |
| CGS219-16/15 | 16 | 695 | 25.48 | ||||
| CGS219-21/15 | 21 | 850 | 31.07 | ||||
| CGS219-25/15 | 25 | 975 | 35.58 | ||||
| CGS219-38/15 | 38 | 1375 | 50.00 | ||||
| CGS219-50/15 | 50 | 1750 | 63.52 | ||||
| Φ219 | CGS219-10/31.5 | 31.5MPa | 10 | 535 | M33×2 | Φ51 | 37.30 |
| CGS219-16/31.5 | 16 | 750 | 52.29 | ||||
| CGS219-20/31.5 | 20 | 895 | 62.40 | ||||
| CGS219-25/31.5 | 25 | 1070 | 74.60 | ||||
| CGS219-32/31.5 | 32 | 1325 | 92.38 | ||||
| CGS219-40/31.5 | 40 | 1610 | 112.25 | ||||
| CGS219-50/31.5 | 50 | 1965 | 137.05 | ||||
| Φ219 | CGS219-10/35 | 35MPa | 10 | 535 | M33×2 | Φ53 | 37.30 |
| CGS219-16/35 | 16 | 750 | 52.29 | ||||
| CGS219-20/35 | 20 | 895 | 62.40 | ||||
| CGS219-25/35 | 25 | 1070 | 74.60 | ||||
| CGS219-32/35 | 32 | 1325 | 92.38 | ||||
| CGS219-40/35 | 40 | 1610 | 112.25 | ||||
| CGS219-50/35 | 50 | 1965 | 137.05 | ||||
| Φ299 | CGS219-10/40 | 40MPa | 10 | 535 | M33×2 | Φ53 | 37.30 |
| CGS219-16/40 | 16 | 750 | 52.29 | ||||
| CGS219-20/40 | 20 | 895 | 62.40 | ||||
| CGS219-25/40 | 25 | 1070 | 74.60 | ||||
| CGS219-32/40 | 32 | 1325 | 92.38 | ||||
| CGS219-40/40 | 40 | 1610 | 112.25 | ||||
| CGS219-50/40 | 50 | 1965 | 137.00 | ||||
| Φ299 | CGS299-50/31.5 | 31.5MPa | 50 | 1155 | M42×2 | Φ66 | 141.91 |
| CGS299-63/31.5 | 63 | 1400 | 172.05 | ||||
| CGS299-80/31.5 | 80 | 1720 | 211.33 | ||||
| CGS299-100/31.5 | 100 | 2095 | 257.41 | ||||
| Φ299 | CGS299-50/35 | 35MPa | 50 | 1155 | M42×2 | Φ70 | 141.91 |
| CGS299-63/35 | 63 | 1400 | 172.05 | ||||
| CGS299-80/35 | 80 | 1720 | 211.33 | ||||
| CGS299-100/35 | 100 | 2095 | 257.41 | ||||
| Φ299 | CGS299-50/40 | 40MPa | 50 | 1155 | M42×2 | Φ70 | 141.91 |
| CGS299-63/40 | 63 | 1400 | 172.05 | ||||
| CGS299-80/40 | 80 | 1720 | 211.33 | ||||
| CGS299-100/40 | 100 | 2095 | 257.41 | ||||
| Φ299 | CYS-299-60/25 | 25MPa | 60 | 1360 | M42×2 | Φ65 | 153.99 |
| Φ426 | CQS426-300/31.5 | 31.5 | 300 | 3130 | M80×3 | Φ120 | 867.56 |
|
